S2

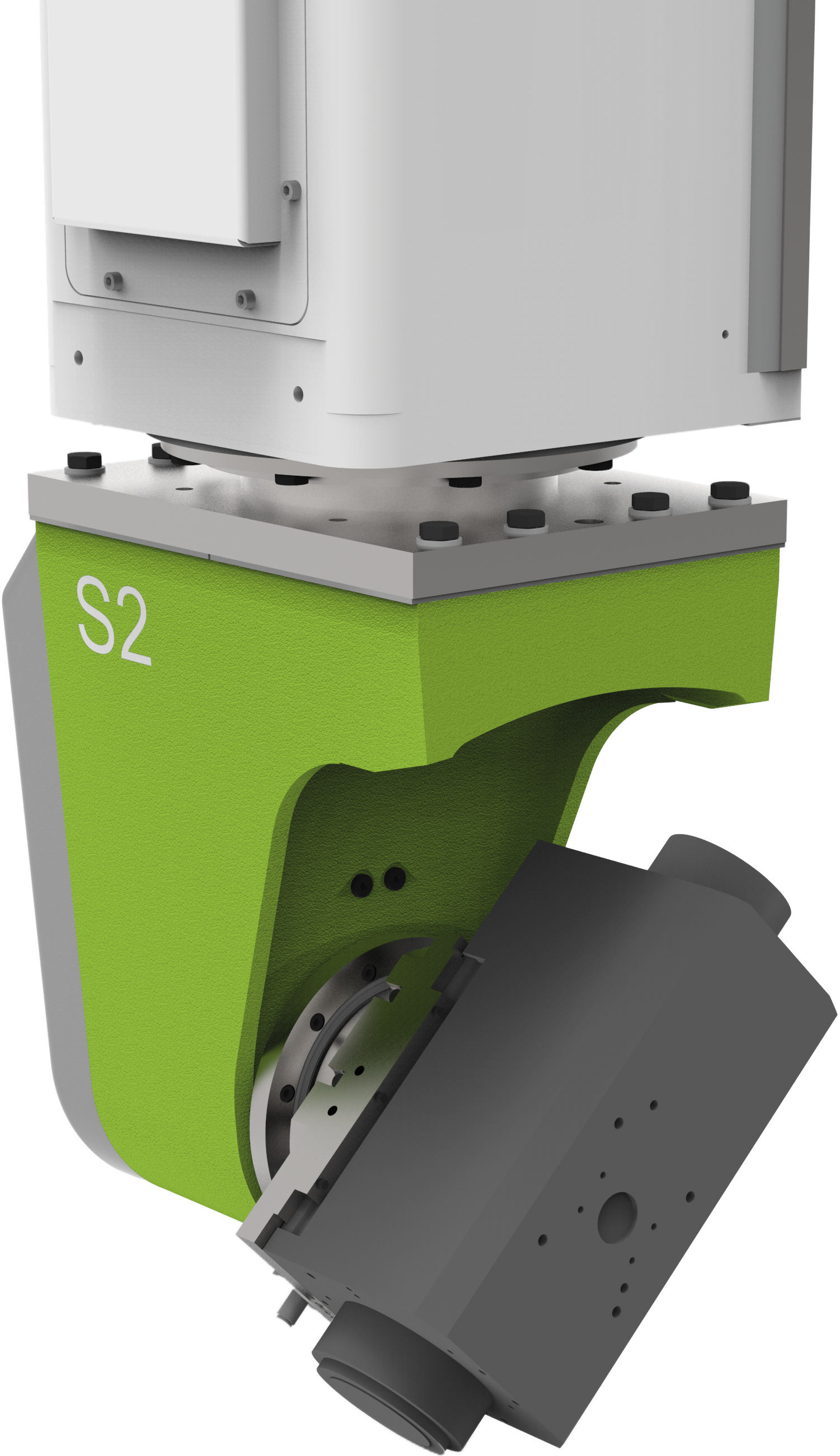

Fräskopf S2

Dynamisch. Flexibel. Präzise.

Der dynamische S2-Kopf ist mit einseitig gelagerter Schwenkachse ausgerüstet und aus Guß gefertigt. Die Schwenkachse kann mit einer Klemmung ausgestattet werden und hat ein indirektes Messsystem in dieser Achse. Er ist bestens für die Aluminium-Profilbearbeitung, CFK- und Kunststoffbearbeitung geeignet. Außerdem ist der Fräskopf für das Ultraschall-Schneideverfahren einsetzbar.

Technische Daten

stdClass Object ( [id] => a9c6e98a-18b0-4146-b2b9-ed12b03bfc01 [machine_id] => 258367 [category] => FZP22 & FZU22 [attributes] => Array ( [0] => stdClass Object ( [id] => 563ce7ef-875c-4f66-8ebd-bd32a9f88a3c [category_id] => a9c6e98a-18b0-4146-b2b9-ed12b03bfc01 [attribute] => Frässpindel 15 kW [values] => Array ( [0] => stdClass Object ( [id] => 8bb5f1fb-1609-45d1-b42d-a90737b1cc94 [attribute_id] => 563ce7ef-875c-4f66-8ebd-bd32a9f88a3c [value] => [subvalues] => Array ( ) ) ) ) [1] => stdClass Object ( [id] => 91a14c65-e8c1-4138-895c-f2470999dc39 [category_id] => a9c6e98a-18b0-4146-b2b9-ed12b03bfc01 [attribute] => Spindelleistung [values] => Array ( [0] => stdClass Object ( [id] => ae8888af-1c0c-47d5-977f-b640ad8d2043 [attribute_id] => 91a14c65-e8c1-4138-895c-f2470999dc39 [value] => S1 (100%) [subvalues] => Array ( [0] => stdClass Object ( [id] => 2d0b4ffb-9b23-4e07-a0d6-c50b7e48ceeb [value_id] => ae8888af-1c0c-47d5-977f-b640ad8d2043 [subvalue] => 15 kW [subvalues2] => Array ( ) ) ) ) [1] => stdClass Object ( [id] => 672f486f-bc07-40f3-b5d7-d0848da19377 [attribute_id] => 91a14c65-e8c1-4138-895c-f2470999dc39 [value] => S6 (40%/2min) [subvalues] => Array ( [0] => stdClass Object ( [id] => f402b3dc-ca20-42fd-95be-3a05d8db327d [value_id] => 672f486f-bc07-40f3-b5d7-d0848da19377 [subvalue] => 18 kW [subvalues2] => Array ( ) ) ) ) ) ) [2] => stdClass Object ( [id] => 4524cb9c-fdce-4582-8aec-544ffd8c19be [category_id] => a9c6e98a-18b0-4146-b2b9-ed12b03bfc01 [attribute] => Spindeldrehzahl [values] => Array ( [0] => stdClass Object ( [id] => 5f7d57b6-ac85-4d68-bf5f-84afa7685b8d [attribute_id] => 4524cb9c-fdce-4582-8aec-544ffd8c19be [value] =>   [subvalues] => Array ( [0] => stdClass Object ( [id] => 907ac577-eafb-4ccf-8d9a-71b91fff2f6f [value_id] => 5f7d57b6-ac85-4d68-bf5f-84afa7685b8d [subvalue] => 24.000 min-1 [subvalues2] => Array ( ) ) ) ) ) ) [3] => stdClass Object ( [id] => 8647ea29-02b9-4ffa-9fee-1f839fe752b7 [category_id] => a9c6e98a-18b0-4146-b2b9-ed12b03bfc01 [attribute] => Drehmoment [values] => Array ( [0] => stdClass Object ( [id] => ade4e3e5-6f6a-4562-b792-708228dcb632 [attribute_id] => 8647ea29-02b9-4ffa-9fee-1f839fe752b7 [value] => S1 (100%) [subvalues] => Array ( [0] => stdClass Object ( [id] => e5299716-12f3-4e00-b2c7-31b783706d90 [value_id] => ade4e3e5-6f6a-4562-b792-708228dcb632 [subvalue] => 12 Nm [subvalues2] => Array ( ) ) ) ) [1] => stdClass Object ( [id] => 7493f272-7217-49ae-b943-84d2222370b3 [attribute_id] => 8647ea29-02b9-4ffa-9fee-1f839fe752b7 [value] => S6 (40%/2min) [subvalues] => Array ( [0] => stdClass Object ( [id] => 8ba5836f-2034-40d3-b21c-9a719bba45ad [value_id] => 7493f272-7217-49ae-b943-84d2222370b3 [subvalue] => 14 Nm [subvalues2] => Array ( ) ) ) ) ) ) [4] => stdClass Object ( [id] => ea9e2bb9-f314-415f-a5b6-9d11713fe881 [category_id] => a9c6e98a-18b0-4146-b2b9-ed12b03bfc01 [attribute] => Werkzeugaufnahme [values] => Array ( [0] => stdClass Object ( [id] => f660dbb0-d772-4685-b13b-7feaa309b75b [attribute_id] => ea9e2bb9-f314-415f-a5b6-9d11713fe881 [value] =>   [subvalues] => Array ( [0] => stdClass Object ( [id] => 12856e0b-bac9-41f4-84ed-8b4d4e3d6a24 [value_id] => f660dbb0-d772-4685-b13b-7feaa309b75b [subvalue] => HSK-F63 [subvalues2] => Array ( ) ) ) ) ) ) ) )
FZP22 & FZU22
Frässpindel 15 kW
SpindelleistungS1 (100%)15 kW
S6 (40%/2min)18 kW
Spindeldrehzahl 24.000 min-1
DrehmomentS1 (100%)12 Nm
S6 (40%/2min)14 Nm
Werkzeugaufnahme HSK-F63
stdClass Object ( [id] => 823230b3-a005-4e5c-9df0-d160e1c967a6 [machine_id] => 258367 [category] => FZP27 & FZU27 [attributes] => Array ( [0] => stdClass Object ( [id] => 391873bf-cdd4-4c5c-9130-e5c5a979c027 [category_id] => 823230b3-a005-4e5c-9df0-d160e1c967a6 [attribute] => Frässpindel 15 kW [values] => Array ( [0] => stdClass Object ( [id] => 24c59a07-988a-4e49-a56b-242e0a8403d5 [attribute_id] => 391873bf-cdd4-4c5c-9130-e5c5a979c027 [value] => [subvalues] => Array ( ) ) ) ) [1] => stdClass Object ( [id] => 94901113-1b80-4b3b-908d-4c773d096dc3 [category_id] => 823230b3-a005-4e5c-9df0-d160e1c967a6 [attribute] => Spindelleistung [values] => Array ( [0] => stdClass Object ( [id] => f4407c5b-e7ed-4c52-a082-75a1be1ee839 [attribute_id] => 94901113-1b80-4b3b-908d-4c773d096dc3 [value] => S1 (100%) [subvalues] => Array ( [0] => stdClass Object ( [id] => f5a0eeb7-ffa7-491b-9e9c-6d27211d1149 [value_id] => f4407c5b-e7ed-4c52-a082-75a1be1ee839 [subvalue] => 15 kW [subvalues2] => Array ( ) ) ) ) [1] => stdClass Object ( [id] => 1d16b072-d3c0-410f-aae8-0cee88daf0cd [attribute_id] => 94901113-1b80-4b3b-908d-4c773d096dc3 [value] => S6 (40%/2min) [subvalues] => Array ( [0] => stdClass Object ( [id] => c612d097-8570-488e-a98e-6b729dc5ab26 [value_id] => 1d16b072-d3c0-410f-aae8-0cee88daf0cd [subvalue] => 18 kW [subvalues2] => Array ( ) ) ) ) ) ) [2] => stdClass Object ( [id] => 141e79e7-ab94-45c4-a981-3c9604916707 [category_id] => 823230b3-a005-4e5c-9df0-d160e1c967a6 [attribute] => Spindeldrehzahl [values] => Array ( [0] => stdClass Object ( [id] => 83162e8b-422f-4c61-b0fd-a007e6838463 [attribute_id] => 141e79e7-ab94-45c4-a981-3c9604916707 [value] =>   [subvalues] => Array ( [0] => stdClass Object ( [id] => d818e34d-2ae4-4b83-9aaa-a9d6e50de199 [value_id] => 83162e8b-422f-4c61-b0fd-a007e6838463 [subvalue] => 24.000 min-1 [subvalues2] => Array ( ) ) ) ) ) ) [3] => stdClass Object ( [id] => faf56456-1788-4fd2-88bf-e4dcb265878b [category_id] => 823230b3-a005-4e5c-9df0-d160e1c967a6 [attribute] => Drehmoment [values] => Array ( [0] => stdClass Object ( [id] => 9dabc310-fdc8-458c-9de8-e129f58e6f08 [attribute_id] => faf56456-1788-4fd2-88bf-e4dcb265878b [value] => S1 (100%) [subvalues] => Array ( [0] => stdClass Object ( [id] => 54119112-f6e0-4cf6-b2b8-c27d7b113df5 [value_id] => 9dabc310-fdc8-458c-9de8-e129f58e6f08 [subvalue] => 12 Nm [subvalues2] => Array ( ) ) ) ) [1] => stdClass Object ( [id] => b6727d13-a6cc-4125-9a52-28fac95c6833 [attribute_id] => faf56456-1788-4fd2-88bf-e4dcb265878b [value] => S6 (40%/2min) [subvalues] => Array ( [0] => stdClass Object ( [id] => 9ebeecd5-0fc5-48b8-8447-3ae985ba3037 [value_id] => b6727d13-a6cc-4125-9a52-28fac95c6833 [subvalue] => 14 Nm [subvalues2] => Array ( ) ) ) ) ) ) [4] => stdClass Object ( [id] => 1bc86d5a-79eb-4d17-8f18-8dac6a0bb373 [category_id] => 823230b3-a005-4e5c-9df0-d160e1c967a6 [attribute] => Werkzeugaufnahme [values] => Array ( [0] => stdClass Object ( [id] => f7e31949-fbb8-4ecd-9a04-b90c7f99ca25 [attribute_id] => 1bc86d5a-79eb-4d17-8f18-8dac6a0bb373 [value] =>   [subvalues] => Array ( [0] => stdClass Object ( [id] => c81ce90a-3caa-4cf0-aa72-389b570fd7cd [value_id] => f7e31949-fbb8-4ecd-9a04-b90c7f99ca25 [subvalue] => HSK-F63 [subvalues2] => Array ( ) ) ) ) ) ) ) )
FZP27 & FZU27
Frässpindel 15 kW
SpindelleistungS1 (100%)15 kW
S6 (40%/2min)18 kW
Spindeldrehzahl 24.000 min-1
DrehmomentS1 (100%)12 Nm
S6 (40%/2min)14 Nm
Werkzeugaufnahme HSK-F63

Passende Portalfräsmaschinen

FZP27 fzp27_portalfräsmaschine_millingsolutions_machining
FZP27Customized and you

Robust. Präzise. Vielseitig

 FZP22 performance_gantry_machine_fzp22
FZP22 Compact and you

Kompakt. Universell. Wirtschaftlich

 FZU37 - Test fzu37_portalfräsmaschine_millingsolutions_machining
FZU37 Excellence and you

Unabhängig. Flexibel. Passend.

 FZU27 fzu27_portalfräsmaschine_millingsolutions_machining
FZU27 Universal and you

Robust. Dynamisch. Akkurat.

 FZU22 fzu22_portalfräsmaschine_millingsolutions_machining
FZU22 Economical and you

Kompakt. Universell. Wirtschaftlich.
