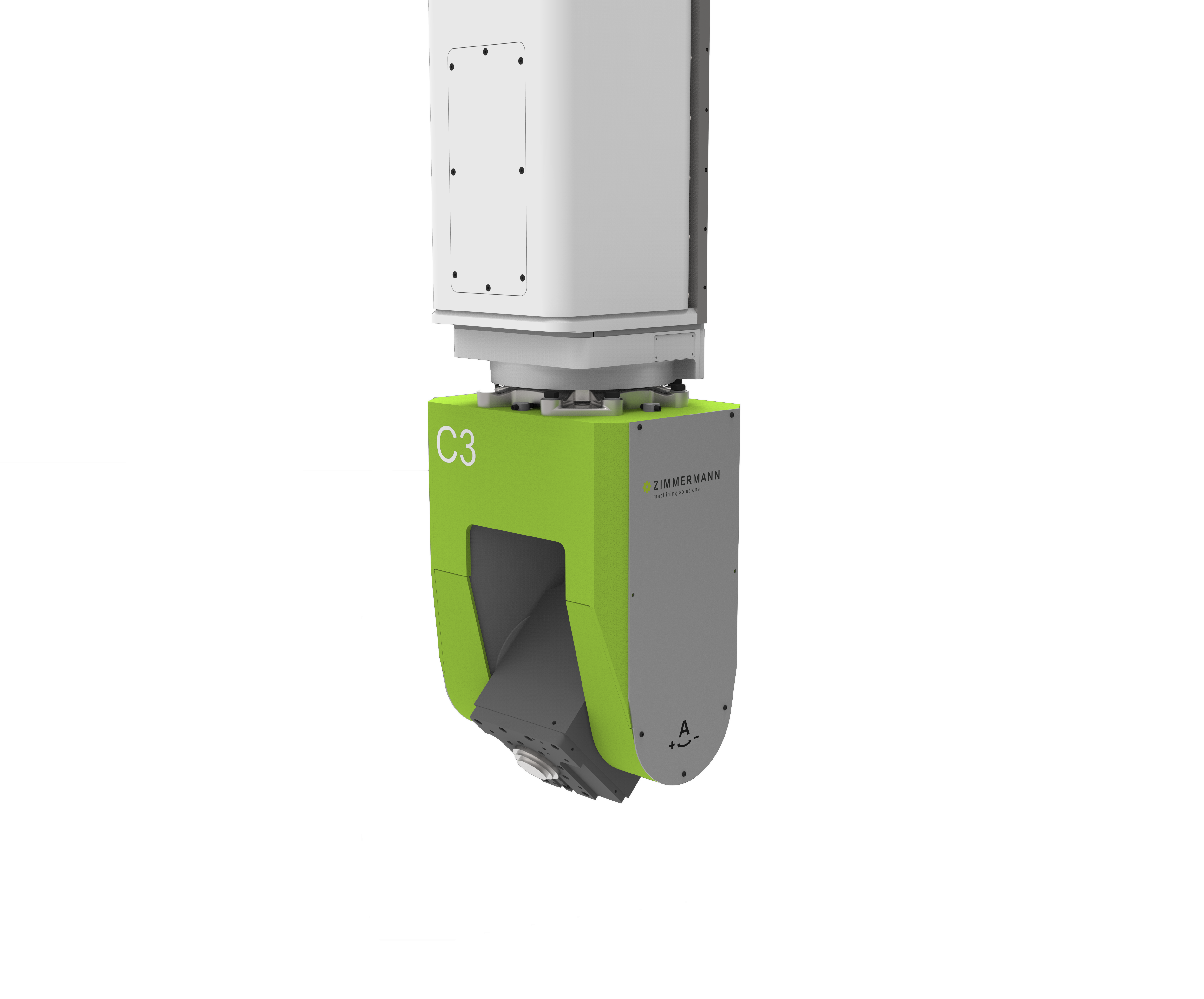

Milling Head C3

Direct. Strong. Accurate.

The dynamic C3 head is equipped with a swivel axis mounted on two sides and is made of cast iron. The swivel axis can be equipped with a clamp and has a direct measuring system in this axis. It is ideal for aluminum and steel machining in model and mold making.

Technical Data

FZU27 & FZP27

Milling Spindle 20 kW (27 hp)

Spindle Power

S1 (100%)

20 kW (27 hp)

S6 (40%/2min)

26 kW (35 hp)

Spindle Speed

26.000 rpm^-1

Torque

S1 (100%)

32 Nm (24 ft lb)

S6 (40%/2min)

41 Nm (30 ft lb)

Tool Holder

HSK-F63

Frässpindel 24 kW (32 hp)

Spindle Power

S1 (100%)

24 kW (32 hp)

S6 (40%/2min)

27 kW (36 hp)

Spindle Speed

18.000 rpm^-1

Torque

S1 (100%)

38 Nm (28 ft lb)

S6 (40%/2min)

43 Nm (32 ft lb)

Tool Holder

HSK-A63

Frässpindel 60 kW (80 hp)

Spindle Power

S1 (100%)

60 kW (80 hp)

S6 (40%/2min)

83 kW (111 hp)

Spindle Speed

15.000 rpm^-1

Torque

S1 (100%)

60 Nm (44 ft lb)

S6 (40%/2min)

83 Nm (61 ft lb)

Tool Holder

HSK-A63

Suitable Machines

FZP27

FZP27Customized and you

Robust. Precise. Versatile.

FZU27

FZU27 Universal and you

Robust. Dynamic. Accurate.
