FZH32

FZH32
Powerful and you

Precise. Powerful. Horizontal.

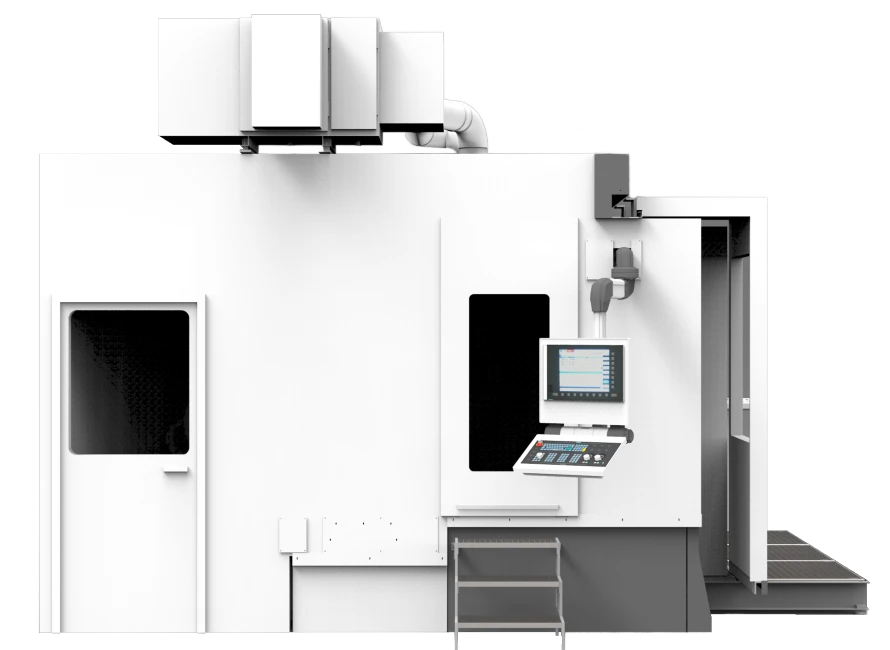

The machine is specifically designed for machining aluminum structures and stringers in the aerospace industry and is ideal for milling, trimming and drilling applications. The compact thermo-symmetrical box-in-box design ensures a minimal footprint and therefore space-saving integration into production environments.

The working range of the machine extends over a length of 2800 to 6000 mm, a height of 950 to 1250 mm and a depth of 600 mm. These dimensions enable the efficient machining of large aluminum structures, which are frequently used in the aerospace industry.

The machine is characterized by highly dynamic linear and rotary axes that ensure precise and fast machining of the workpieces. Another outstanding feature is the slim milling head with a low interference contour, which allows the machining of complex geometries and areas that are difficult to access. Overall, this machine offers a powerful and flexible solution for the special requirements of the aerospace industry, especially when machining aluminum structures and stringers. The horizontal machining center is also used in the automotive industry.

Technical Data

Working Ranges

X-axis

2800-3400 mm (in steps of 500 mm up to 6400 mm)

Y-axis

950 or 1250 mm

Z-axis

600 mm

Drives Linear Axes

Rate of feed

X-axis

70 m/min

Y-axis

40 m/min

Z-axis

60 m/min

Acceleration

X-, Y-, Z-axis

3 m/s²

Accuracy

Standard

in accordance to VDI/DGQ 3441 or ISO 230-2

CNC control

select from

Heidenhain TNC7

Siemens SINUMERIK ONE
