Exact.
Stable.
Versatile.

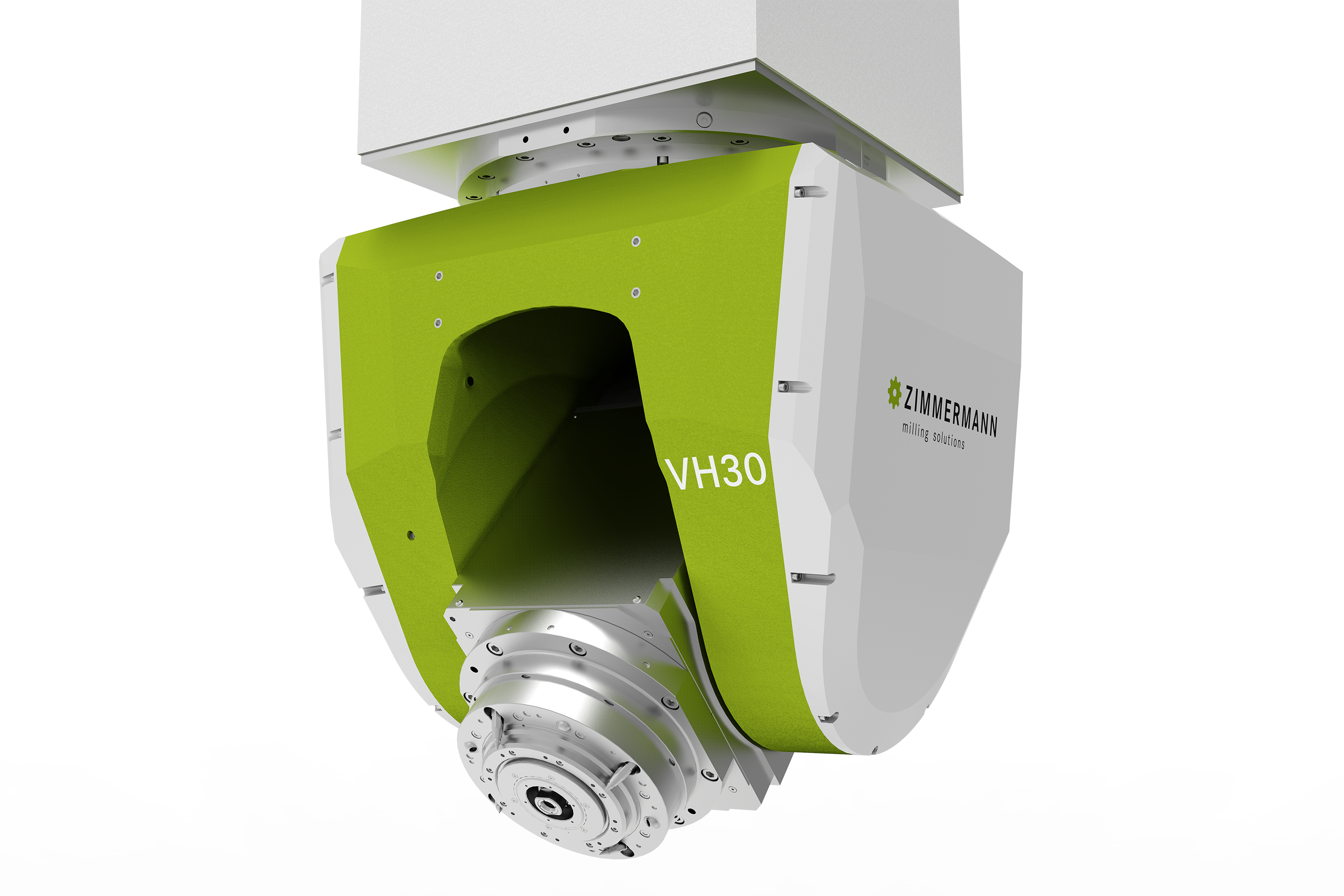

The dynamic 2-axis milling heads VH30 has a high-frequency spindle (HF spindle). The fork head is designed in monobloc versions made of cast iron. This design achieves maximum temperature stability and has integrated vibration and vibration damping, which ensures even more precise results during the milling process. The high-torque VH30 milling head offers a plus when it comes to roughing steel and cast iron.

The VH30 achieves low non-productive times during start-up, shutdown and repositioning. It is suitable for milling aluminium, composite materials, steel and cast iron.

Suitable Milling Machines

Excellent workload for various tasks

The FZ30 and FZ35 portal milling machines meet industry-specific requirements from many areas, for example in model and mould making for machining models, moulds, injection moulding and sheet metal forming tools in many variants, in å construction for trimming trim parts, stretch moulding parts, rudders and special applications in acrylic glass as well as in boat and shipbuilding, for the manufacture of laminating moulds or deck structures.

Technical Data

Swiveling Range
A-axis   +125°/-95°
C-axis   up to ± 360°
Performance
Torque A-axis   min. 1.200 Nm
Torque C-axis   1.047 Nm opt. 1.279 Nm
Holding torque (clamped)   3.000 Nm
Feedrate about A-, C-axis   360°/s
Accuracy
Positioning accuracy A-, C-axis 10"
Repeatability A-, C-axis 6"
Milling Spindle 60 kW
Spindle Power S1 max. (100% ED)   60 kW
Torque S1 max. (100% ED)   95 Nm
Spindle Speed max.   22.000 rpm
Constant Power   6.000 - 22.000 rpm
Tool Holder   HSK-63A
Swivle Axis – Spindle Nose   301 mm
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Lubrucation   Permanent Grease Lubrication
Coolant Supply, Minimum Lubrication, Air Blowing   Both External and Through Tool

For a consistent and efficient milling process

This gantry milling machine is perfect for machining aluminum and composite materials. The machine sits on a flat foundation and can be set up on any solid industrial floor. The machine table is firmly anchored to the FZ33 compact so the workpiece does not have to be moved. The milling process is highly precise, regardless of weight and size of the workpiece.

Technical Data

Milling Head
Torque Rotary Axes in control A-axis: min. 1.200 Nm
    C-axis: 1.047 Nm, opt. 1.279 Nm
  clamped A-, C-axis: 3.000 Nm
Swiveling Range
A-axis   + 125 / - 95°
C-axis Z-axis < 1.500 mm ± 300°
  Z-axis ≥ 1.500 mm 260°
Drives Rotary Axes
Rate of Feed A-, C-axis 360°/s
Acceleration A-, C-axis 700°/s2
Resolution A-, C-axis 0,0001°
Accuracy
Positioning Accuracy A-, C-axis 10"
Repeatability A-, C-axis 6"
Milling Spindle 60 kW
Spindle Power S1 (100%) 60 kW
  S6 (40%/2min) 79 kW
Spindle Speed   22.000 rpm
Torque S1 (100%) 75 Nm
  S6 (40%/2min) 126 Nm
Constant Power S1 (100%) 6.000 - 22.000rpm
Swivle Axes - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool
Milling Spindle 74 kW
Spindle Power S1 (100%) 74 kW
  S6 (40%/2min) 78 kW
Spindle Speed   30.000 rpm
Torque S1 (100%) 73 Nm
  S6 (40%/2min) 92 Nm
Constant Power S1 (100%) 9.690 - 30.000 rpm
  S6 (40%/2min) 8.140 - 30.000 rpm
Swivle Axis - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool

The All-Rounder for Aviation and Automotive

The FZ37 portal milling machine has a modular design which allows different operating ranges and the use of different makes of CNC controls. The structurally rigid portal, the cross- and Z-slides and the dynamic milling heads facilitate a consistent, efficient milling process. The versatile 5-axis FZ37 is also suitable for machining of workpieces in shipbuilding and the alternative energy industry.

Technical Data

Milling Head
Torque Rotary Axes in control A-axis: min. 1.200 Nm
    C-axis: 1.047 Nm, opt. 1.279 Nm
  clamped A-, C-axis: 3.000 Nm
Swiveling Range
A-axis   +125/-95°
C-axis   ± 300°/360°
Drives Rotary Axes
Rate of Feed A-, C-axis 360°/s
Acceleration A-, C-axis 700°/s2
Resolution A-, C-axis 0,0001°
Accuracy
Positioning Accuracy A-, C-axis 10"
Repeatability A-, C-axis 6"
Milling Spindle 60 kW
Spindle Power S1 (100%) 60 kW
  S6 (40%/2min) 79 kW
Spindle Speed   22.000 rpm
Torque S1 (100%) 75 Nm
  S6 (40%/2min) 126 Nm
Constant Power S1 (100%) 6.000 - 22.000rpm
Swivle Axes - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool
Milling Spindle 74 kW
Spindle Power S1 (100%) 74 kW
  S6 (40%/2min) 78 kW
Spindle Speed   30.000 rpm
Torque S1 (100%) 73 Nm
  S6 (40%/2min) 92 Nm
Constant Power S1 (100%) 9.690 - 30.000 rpm
  S6 (40%/2min) 8.140 - 30.000 rpm
Swivle Axes - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool

The flexible power package

This CNC portal milling machine is designed for the machining of hard materials as well as aluminum. With its solid cast base, it does not require a foundation and can be set up on any solid shop floors. In addition, the sidewalls are filled with a special dampening concrete mix to further enhance performance. The machine has a fully enclosed working space with a fixed machine table. The structural sound overhead gantry with a reinforced Z-ram make up the moving masses. The combination of high strength and rigidity, constant moving masses and dynamic drives, will meet the industries high demands.

Technical Data

Milling Head
Torque Rotary Axes in control A-axis: min. 1.200 Nm, C-axis: 1.047 Nm
  clamped A-, C-axis: 3.000 Nm
Swiveling Range
A-axis   +125/-95°
C-axis Z < 1.500 mm ± 300°
Z ≥ 1.500 mm ± 360°
Drives - Rotary Axes
Rate of Feed A-, C-axis 360°/s
Acceleration A-, C-axis 700°/s2
Resolution A-, C-axis 0,0001°
Accuracy
Positioning Accuracy A-, C-axes 10"
Repeatability A-, C-axes 6"
Milling Head
Spindle Power S1 (100%) 25 kW
  S6 (40%/2min) 31 kW
Spindle Speed   20.000 rpm
Torque S1 (100%) 119 Nm
  S6 (40%/2min) 148 Nm
Constant Power S1 (100%) 2.000 - 20.000 rpm
Swivle Axes - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool

Maximum precision and dynamics

The FZ42 CNC portal milling machine has a modular design which allows the combination of different operating ranges, travel distances, milling heads and CNC controls. Thanks to its combination of high stability and rigidity this machine is able to meet all the requirements of model making, tool and mold construction, including the demands of the aerospace and automotive industries. It is also suitable for machining of workpieces in shipbuilding and the alternative energy industry.

Technical Data

Milling Head
Torque Rotary Axes in control A-axis: 1.200 Nm, C-axis: 1.047 Nm
  clamped A-, C-axis: 3.000 Nm
Swiveling Range
A-axis   +/- 110° or +125°/-95°
C-axis Z-axis < 1.500 mm 300°
  Z-axis ≥ 1.500 mm 360°
Drives - Rotary Axes
Rate of Feed A-, C-axes 360°/s
Acceleration A-, C-axes 700°/s2
Resolution A-, C-axes 0,0001°
Accuracy
Positioning Accuracy A-, C-axes 10"
Repeatybility A-, C-axes 6"
Milling Spindle 25 kW
Spindle Power S1 (100%) 25 kW
  S6 (40%/2min) 31 kW
Spindle Speed   20.000 rpm
Torque S1 (100%) 119 Nm
  S6 (40%/2min) 148 Nm
Contant Power S1 (100%) 2.000-20.000 min-1
Swivel Axes - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool

For a highly efficient milling process

Zimmermann's horizontal machining centres feature pioneering new developments and high-performance milling spindles. They make it possible to manufacture aerospace industry components from a wide range of different materials. The rigid machine bed of the innovative travelling column unit and the highly dynamic Zimmermann milling heads ensure an efficient milling process. The automation system, which is supplied as standard, and the newly developed pallet handling capability are integral components of the horizontal machining centres.

Technical Data

Milling Head
External Dimension Length x Width 500 x 675 mm
Torque Rotary Axes in control A-axis: min. 1.200 Nm, C-axis: min 1.047 Nm
  clamped A-, C-axis: 3.000 Nm
Drives - Rotary Axes
Rate of Feed A-, C-axis 360°/s
Acceleration A-, C-axis 700°/s2
Resolution A-, C-axis 0,0001°
Milling Spindle
Spindle Power S1 (100%) 74 kW
  S6 (40%/2min) 78 kW
Spindle Speed   30.000 rpm (Oil-Mist Lubrication)
Torque S1 (100%) 73 Nm
  S6 (40%/2min) 92 Nm
Constant Power S1 (100%) 9.690 - 30.000 rpm
  S6 (40%/2min) 8.140 - 30.000 rpm
Swivle Axes - Spindle Nose   301 mm
Tool Holder   HSK-A63
Tool Clamping   Spring Clamp
Tool Release   Hydraulic
Coolant Supply, Minimum-Quantity Lubrication, Air Blowing   External and Through Tool
